CK A9

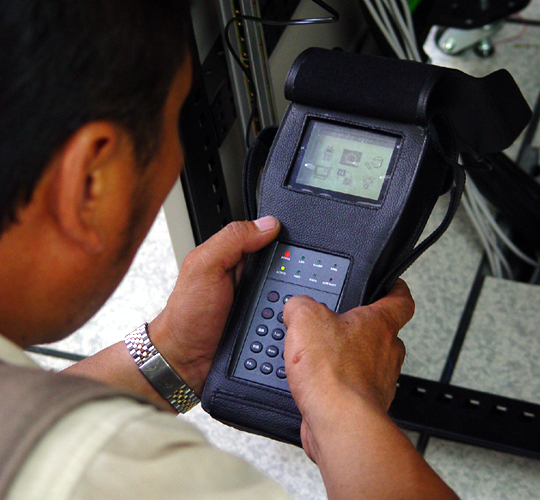

ADSL Tester CK A9 is specially developed to make it easy to investigate all functions of ADSL, ADSL +, ADSL 2, ADSL 2+ service even in a rough working environment. CK A9 is the core testing suite to build ADSL, ADSL +, ADSL 2, ADSL 2+ lines in home or office and repair them. CK A9 can build up and test any user's network environment like PPPoE and provide the user-friendly interface to you with a wide LCD module and many keys. With this suite, you can also complete the TCP DATA transmission test over ADSL line.CK A9 shows you a configurable testing scenario which makes you be free from the complicated testing procedures. You can see all the categorized testing results and save it for the future use.

1 2 3 4


Features

1. Automatic Testing/ One Click Testing
-Scenario-type line test for all courses by clicks on buttons.
-User can select test items(DSLAM, NAS, Ping, etc.) from the screen.

2. Fixed IP measurement function
-My IP, Multi IP service test function

3. More powerful Frame Check function
-5 Frame Check functions(LOM, LOC, LOP, LOS, LOF) in addition to CRC, FEC, HEC
-Exact check function regarding data transmission
-Error counting function with real-time test

4. Continuous test function
-Display average, maximum and minimum values by linking from No.2 to No.9, to test exact performance of lines changeable by modem link.

5. Powerful battery included
-Operating time extension using 2100mA large-capacity battery suitable for carrying.

6. Wide screen LCD (Backlight function-able to read in dark area)

7. Able to save 32 tested data(storage expansion) -data transmission inter working with PC

8. Built-in telephone function

9. Easy to read using 12 LED lights (Signal stand-by, Link setting, Linked, etc.: total 12 kinds of LED)


Analyzer Formation

LCD
English (5 lines * 21 letters), Chinese (5lines * 10 letters)

Keypad
20ea

Interface
RJ-11(1ea), Power (DC power), Ear Phone Connection, PC Connection (DB-25 Pin)

Battery
Capacity (2100mA), Recharge time (5 hrs), Continuous using time (4 hrs)

Other function
Back light function
