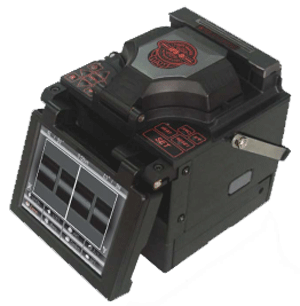

ARC Fusion Splicer ISF-9
Highlights

* Characteristic

- 2.9kg weight, light and handy, user friendly, easy to operate
- Very fast splicing time, only 9 seconds
- Operates in Bi-Directional view.
- Real-time calibration of arc-discharge
- Large capacity Lithium-Ion Battery
- Friendly GUI, easy to operate
- Artificial technology, auto discriminate fiber and auto select fusion mode
- Auto compensate arc-discharge according to temperature and air pressure
- USB master port, easy to upgrade software
- Entire environmental protection design conforms to the ROHS standard
- High density windproof design, newest fusion technology (High: 170mm, wide: 150mm)

* TWO-WAY Multi-Task Support

180 degrees switching monitor application to match user's work
preference. One can choose his work environment by changing
monitor front or back.


Specifications

- Splicing Method: Core alignment
- Applicable fiber: SM(ITU-TG.652), MM(ITU-TG.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
- Average loss: SM(0.02dB), MM(0.01dB), DS(0.04dB), NZDS(0.04dB)
- Return loss: >> 60dB
- Splice time: SM fusion average 9s
- Cleaved length: The fiber which coat-diameter is less than 0.25mm : 8 - 16mm
The fiber which coat-diameter is lager than 0.25mm : least 16mm
- Operating environment: elevation 0-5000 meters, 95% relative humidity, -10 — +50C
- Magnification: XY style: 150 power, X / Y: 300 power
- Monitor: 2CCD camera system, 5.6 inch LCD
- Splice Programs: 40 user mode, 10 factory preset mode
- Coating Diameter: 100 - 1000um
- Clading Diameter: 80 - 150um
- Splice memory: Can save 2000 records
- Fiber Display: X / Y or XY, single X, Y
- Proof test: 2N (standard)
- Heating programs: Preset 10 kind heating mode
- Heating time: FP-03 typical heating time 30s
- Protection sleeve: 60mm, 40mm
- Battery: Typical fusion 190 times
- Power supply: AC 100 - 240V input or, DC 12 - 15V
- Data output: USB master device and AV
- Wind protection: The max wind speed 15 m/s
- Size: 150 x 150 x 175mm
- Weight: 2.9kg

* Standard Package Kit (No. Quantity)

Main unit IFS-9 (1)
AC adaptor ACM-12 (1)
Battery pack LBT-10 (1)
AC Power cord ACC-15 (1)
Spare electrode E-202 (1)
Carrying case NBX-25 (1)
High Precision Cleaver VF-77 (1)
Cooling groove CG-12 (1)
User manual MB-9XX (1)

* Optional Accessories

- Battery
- Discharge line
- DC line
- Cleaver
- Electrode
- Blade
- Clad strip
- Protect member
