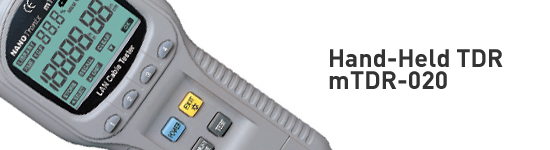

mTDR-020

The mTDR020 is the ideal instrument for both LAN and cable network management. It combines the best of mTDR010's cable measurement technologies with additional features that enable technicians to troubleshoot during LAN installation and maintenance.

Features
High Resolution and High Accuracy
   Resolution: 5cm (2 in)
   Accuracy: ¡¾ 1% of reading + 10cm (4 in)
Automatic controls and settings for wide range of cables
   Auto-range
   Auto-zero
   Auto-sensitivity
   Output impedance control
Extra-large backlit (ICON type 7 segment) LCD
User-friendly menu screen
Cable length calibration
Internal library of 39 standard cable types
20 additional library memory spaces for new V.O.P settings
Efficient power management
LAN cable fault detection for open, shorted, crossed, split and reversed pair
Built-in tone generator
Free standalone inductive probe
Overload voltage protection: Sounds and displays "OUCH" alert message to render safe operations even when line voltage exceeds 6.5V


APPLICATIONS
The mTDR020 is the ideal instrument for both LAN and cable network management. This meter is primarily designed for LAN installers, cable wholesalers, contractors, electricians and alarm installers who need to troubleshoot and measure individual line faults (open & shorts), pairings, and their distances.
Applications include:
   LAN network solution maintenance
   CATV network maintenance
   Electric power distribution management
   Telephony network maintenance
   Security system maintenance


AUTOMATIC V.O.P. CALCULATIONS
The mTDR series' Automatic V.O.P. calculation allows for efficient measurements for all types of cables--its self-acquiring cable V.O.Ps enables even the inexperienced technicians to set up and conduct standardized tests to get perfect results every time. A additional 20 memory spaces are available for storing custom V.O.P. settings, which, among various other possibilities, let technicians to save frequently worked cable V.O.Ps for future usage.


SPECIFICATIONS
Except where otherwise stated, this specification applies at an ambient temperature of 68 ¡ÆF (20 ¡ÆC).

- TEMPERATURE
Operational temperature: 0¡ÆC(+32¡ÆF) ~ 60¡Æ C(140¡ÆF)
Storage temperature: -20¡ÆC(-4¡ÆF) ~ 70¡ÆC(158¡ÆF)
Humidity: < 85%

- CABLE LENGTH MEASUREMENTS
Range up to 600m (2,000ft)
Accuracy: ¡¾ 1% of reading + 10cm (4 in)
Resolution: 5cm (2 in)

- DIMENSIONS
H: 235mm (9.25 in) X W: 100mm (3.94 in) X D: 44mm (1.73 in)

- WEIGHT
450g (16oz)


ACCESSORIES
STANDARD
User's manual
Alligator clip
4 AA batteries
Soft carrying case
Male BNC to female RJ45 adaptor
RJ45 to RJ45 patch cable
RJ45-RJ45 female coupler
Female RJ45 to female BNC (Remote identifier #1)
Inductive probe for tone generator

OPTIONAL
Female RJ45 to female BNC
Remote Identifier #2
Remote Identifier #3
Remote Identifier #4
